Display Color Analyzer mod. 7123

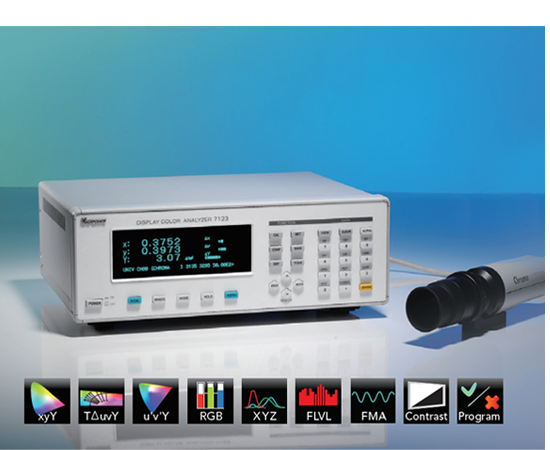

Display Color Analyzer 7123
Chroma model 7123
Display Color Analyzer

7123 Data Sheet
Click to view in PDF format  (1.167 KB)

  • Luminance and chromaticity measurement of Color Display
  • 0.005 cd/m2 low luminance measurement (A712301)
  • Wide luminance range:
    0.0001 to 25,000 cd/m2 (A712301)
    0.01 to 200,000 cd/m2 (A712302)
    0.01 to 6000 cd/m2 (A712200)
  • High accuracy measurement
  • Maximum 9 display modes:
    xyY, TΔuvY, u'v'Y, RGB, XYZ, FMA(A712200), FLVL(A712200), Contrast, Program
  • Support Contrast, JEITA and VESA for flicker measurements (A712200)
  • Able to control Video Pattern Generator and UUT (Unit Under Test)
  • Built-in contrast measurement function to calculate the contrast ratio directly
  • Equipped with programmable test items that can complete the planned tests with one single button
  • Support USB flash disk that can copy the test procedures to other station for use
  • Judgment function embedded to judge the test result automatically with one single button
  • Calibration period setting and reminding function
  • Memory for storing 100 channels of standard color data and calibration data
  • Built-in flat display calibration data LCD-D65 & LED-D65* to be applied for chromaticity measurement instantly
  • Optional display white balance alignment system can be used to integrate all optical test stations to one single station

*  It uses the typical fluorescent excited white light LED display

Chroma 7123 Display Color Analyzer adopts the design of contact and non-contact type measurements based on the probe selected to measure the luminance and chromaticity of display panels. Developed with the most advanced digital signal processor and the technology of optoelectronic transfer as well as precision optical parts and circuit design, the 7123 Display Color Analyzer is capable of performing high speed, accurate and stable color tests.

The configuration of Chroma 7123 complies with the color matching function sensor of CIE 1931 and CIE1976 UCS that can measure the luminance and chromaticity of display panel accurately. Users can switch to various types of chromaticity coordinates freely including xyY, TΔuvY, u'v'Y, RGB, XYZ, FMA (A712200), FLVL (A712200), Contrast and Program 9 modes in total. The A712301 that is designed to test the LCD characteristics with LED backlight is able to meet the low luminance test requirements of 0.005cd/m2. In addition, the A712302, designed for small size display in particular can solve the problem of color analyzer measurement area larger than the display area with its 5mm measurement area.

To satisfy the needs for automation, the 7123 is equipped with the function to control the video pattern generator and the UUT without using a personal computer, to cut down the acquisition and management cost. The 7123 also has the functions of contrast measurement, result judgment and programmable test items that can fulfill the auto test requirements to enhance the production efficiency.

The Optical Measurement Software incorporated by Chroma 7123 is able to do Chromaticity, Luminance, Flicker (A712200) and Gamma measurements on PC, and then show the measured data on CIE1931 and CIE1976 UCS chromaticity coordinate chart directly. Besides the function of drawing Gamma curve, the measured data can also be stored on PC and exported to EXCEL® for process. The example programs enclosed in optical measurement software allow users to develop the test programs that suit their needs.

Chroma 7123 Display Color Analyzer has 100 channels of built-in memory for storing the value of standard colors and calibrated data. In addition, Chroma 7123 also provides many friendly user interfaces for operation such as the way test data shows, the position set for push buttons, the positioning projector, USB and RS-232 interfaces for data transmission, calibration period setting as well as reminding function and etc. to satisfy the requirements for actual measures. Using the USB flash disk, the test procedures can be copied to other stations for use and reduce the time for repeated editing considerably.

As the technology and products of flat displays have become the mainstream in the market today, every manufacturer is seeking for high value-added and low cost measurement solutions to raise its competitiveness; Chroma 7123 Display Color Analyzer is the excellent tool to assist in achieving that purpose.



Model      Description
7123  Display Color Analyzer
A712200  Flicker measuring probe (with 2.5m signal cable)
A712301  Ultra-low luminance measuring probe (with 2.5m signal cable)
A712302  Small size high luminance measuring probe (with 2.5m signal cable)
A240100  USB flash disk
A712102  Tripod (including a level gauge)
