Grid Emulator Rigenerativo Rack Series SiC-RS
Click to view in PDF format (2366 KB)
Click to view in PDF format (2463 KB)
Key Features:
- Bidirectional and Regenerative
- Rated Power: 50kW
- Efficiency: ³ 94%
- AC Voltage Range: up to 295Vrms phase-neutral
- Fundamental Frequency: 10 to 1000Hz
- Small Signal Bandwidth: up to 5000Hz
- AC Transient Time: < 100μs
- DC Voltage Range: 2Q 20-800V – 4Q ±350V
- DC Transient Time: < 250μs
Operation Modes:
- AC Programmable Voltage (CV) (only in GE+)
- AC Programmable Current (CC) (only in EL+)
- AC Programmable Power (CP / CS) (only in EL+)
- AC Programmable Impedance (CZ) (only in EL+)
- DC Programmable Voltage (CV), Current (CC)
- DC Programmable Power (CP), Resistance (CR)
- PHiL Delay Analog In - Real Power Out: 150 μs
- PHiL Delay Real Power Out - Analog Out: 130 μs

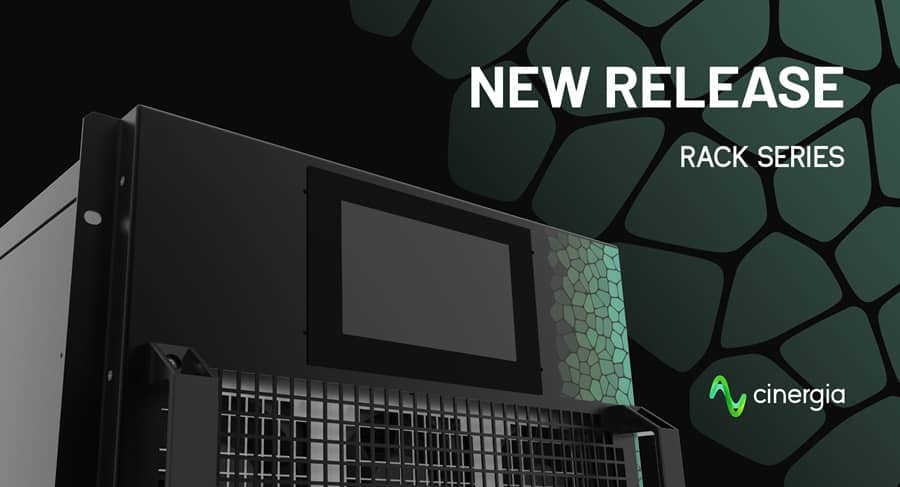

The Rack Series includes a 19-inch rack format for their most significant regenerative products: the Grid Simulator 4Q AC&DC, Electronic Load 4Q AC&DC and the All-Terrain Grid Simulator & Electronic Load 4Q AC&DC.
Key features of the new Rack Series
High-efficiency: The Rack Series offers the highest efficiency in the market in both sourcing and regenerating energy, resulting in greater energy savings, less environmental impact and a reduction in electrical installation rating.

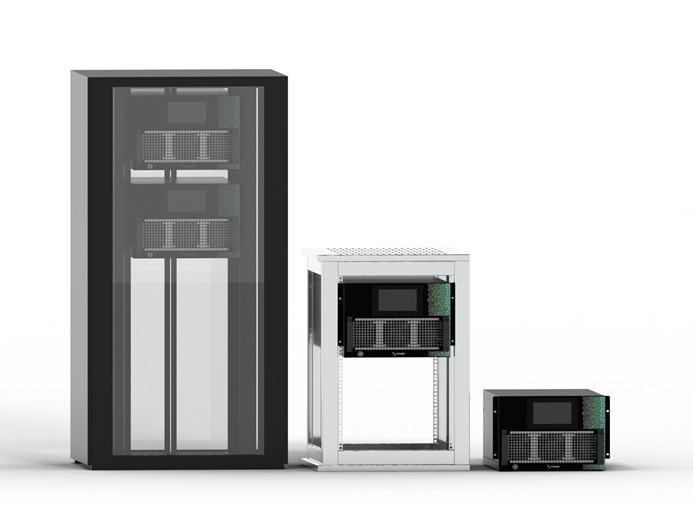

Space-efficiency: Being designed to fit standard 19-inch racks, with 7U and 675mm depth, is particularly advantageous for burn-in and end-of-life testing within production or systems integration environments.
Easy integration: The Rack Series’ units can be easily integrated into automated test lines thanks to the analog & digital IO and the open MODBUS/TCP protocol.
Larger Touchscreen and User Friendly Interface: Its 7-inch touchscreen monitor, with an intuitive interface designed by engineers for engineers, allows for easy local operation.
SiC Technology: Built with cutting-edge SiC (Silicon Carbide) technology, the SiC-RS ensures exceptional efficiency, minimising energy losses and maximising performance.

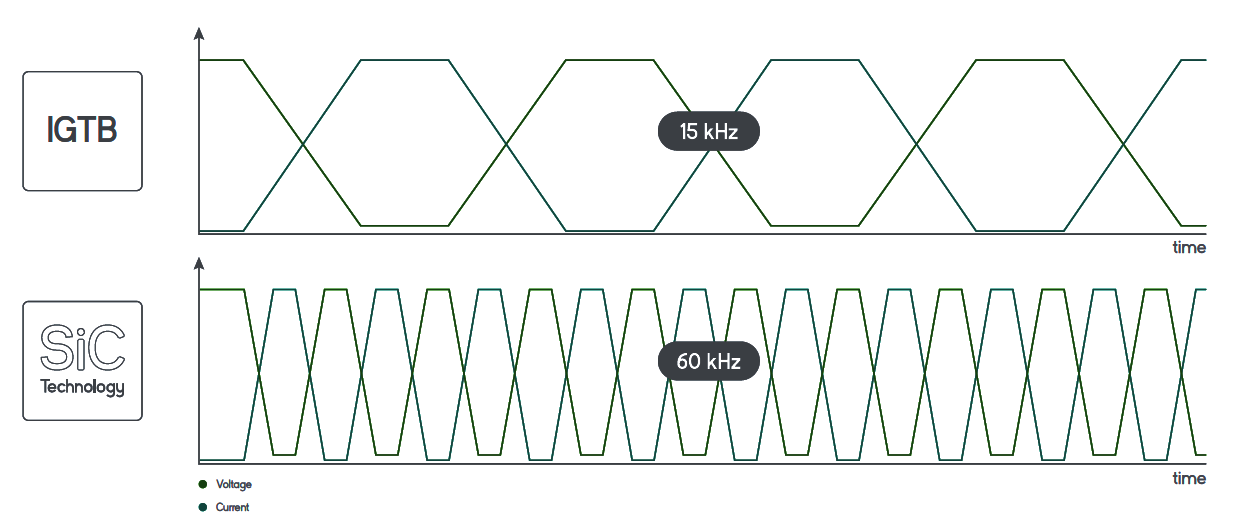

Higher switching frequency: Thanks to the SiC MOSFETs, which enables much better transient response compared to IGBT equipment, the switch increased up to 50kHz, reducing the current-voltage crossover duration and the losses at each commutation.
Transient time: Thanks to the use of Silicon Carbide technology combined with the control hardware and firmware, the RS products achieve high transient times needed for grid and power hardware in the loop testing applications.
Regenerative Technology: Like all CINERGIA products, the GE AC/DC SiC-RS allows for the re-injection of used power back to the grid, resulting in a reduction of both consumed energy and required power.
Made in Europe: SiC-RS family products are fully designed and manufactured in Europe, subject to the most rigorous testing, and complying with all CE and quality standards.
