Precision DC Calibrator M160

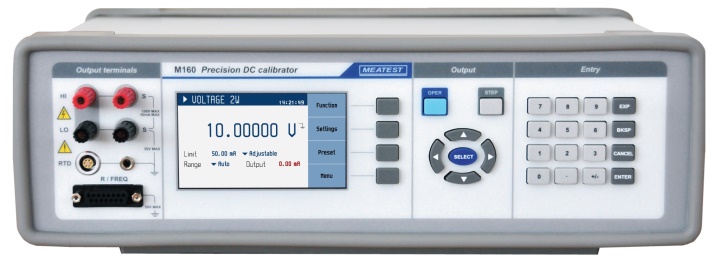

M160 Precision DC Calibrator
M160 Precision DC Calibrator

  • 20 ppm accuracy
  • 13°C - 33°C reference temp. range
  • 100 V @ 25 mA output capacity
  • possibility of warranty extension to 3, 4 or 5 yaers




M160 Data Sheet
Click to view in PDF format  (152 KB)



Description

Precision DC calibrator M160 is a portable source of industrial process signals for calibration of multimeters in laboratories as well as on site calibration of evaluation units and other process meters. High load capacity of both voltage and current outputs, robust design and exceptional 20 ppm accuracy over 20°C-wide reference temperature range make this calibrator great for demanding conditions in production facilities. Other functions include thermocouple and RTD simulation, resistance and frequency, all with accuracy and resolution to meet all requirements. With option 91 the calibrator can measure temperature directly at output terminals and compensate the cold junction effect.

Beside M160's industrial versatility, the calibrator is focused on user friendliness making calibrations simple and straightforward. Main parameters of both generated and measured signals are displayed on large LCD together with function-specific tooltip, providing all relevant details including range, accuracy or load limit. Inspired by recalibration simplicity of M6xx series, the M160 can be easily calibrated using just its front keyboard without any mechanical adjustment inside the instrument.
M160 can be connected to various ATE systems via RS232, USB, LAN or GPIB interface and is fully compatible with WinQbase/Caliber calibration software including the CamOCR module for automated optical UUT readouts.

Specifications
DC voltage 0 - 100 V, max. burden up to 2.5 W
± 10 ppm / year
DC current 0 - 50 mA, max. burden up to 2.5 W
± 50 ppm / year
Resistance 10 Ω - 300 kΩ, resolution from 100 µΩ
± 200 ppm / year
Temperature TC BEJKNRST with cold junction compensation
RTD ± 0.1°C / year
Frequency 0.01 Hz - 15 kHz
± 50 ppm / year

Process Meter
Frequency 0.01 Hz - 100 kHz
± 50 ppm / year

Versions & Options
M160-V1000 Extended version with all listed functions and RS232
M160i-V1000 Basic version with voltage, current, freq., TC function and RS232
-V2xxx GPIB, USB and Ethernet interface extension
-Vxx1x 19" rack version, height 3HE

Accessories
option 160-60 Terminal adapter for frequency function (M160i)
option 160-70 Terminal adapter for frequency and 4W resistance/RTD functions (M160)
option 15 Test cable 600V/12A, 0.75m, black
option 16 Test cable 600V/12A, 0.75m, red
option 91 Pt100 cold junction compensator
GPIB cable IEEE488-IEEE488 cable, 2m
RS232 adapter RS232-USB generic adapter
RS232 cable male-female RS232 cable, 2m
