Programmable Resistance Decade M642



M632 Precision Resistance Decade

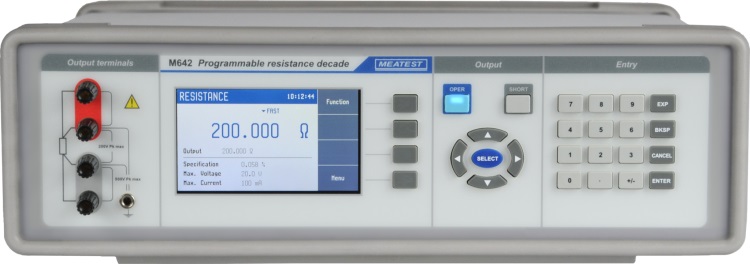

M642 Programmable Resistance Decade



M642 Data Sheet
Click to view in PDF format  (286 KB)

  • Real resistors switched by relays
  • Resistance range 0.1 Ω - 20 MΩ
  • Accuracy 0.02%
  • Maximal load 5 W
  • Maximal voltage 200 Vpk
  • Resolution from 1 µΩ
  • Range of Pt sensor temperature simulation -200°C - +850°C
  • Connection 2, 3, 4-wire
  • Remote control RS232, optionally USB, IEEE488, Ethernet


Description

Model M642 is programmable real-resistance decade with range from 0.1 Ω to 20 MΩ. Basic accuracy is 0.02 %, best resolution on the lowest range is 1 µΩ. Decade consists of high load resistors switched with combination of relays. Apart from resistance function, the M642 can be also used as an RTD temperature sensor simulator (temperature setting in degree Celsius or Fahrenheit).
Instrument can be controlled via RS232, USB, LAN or GPIB interface.

Typical use

Resistance decade is determined for use in industry as a device for resistance-based sensor simulation, ohmmeter and multimeter testing, quality testing and so on.
Decade can be ordered as 19" module for easy assembling into a 19" rack. Module height is 3HE.
